It can be used for primary secondary fine crushing of over 120 kinds of stones and rocks, such as granite, gold stone, ballast, copper ore, quarry stone, rock, gravel, river rock, boulder, aggregate, basalt, etc. Common output size is 0-10mm, 10-20mm, 20-30mm, 30-40mm, etc. Adjustable final size meets different needs.
Free ConsultationWe have types of stone crushers for sale, each type crusher has full models (small, medium and large ones ) for choice, provide customized solution for you according to needs.

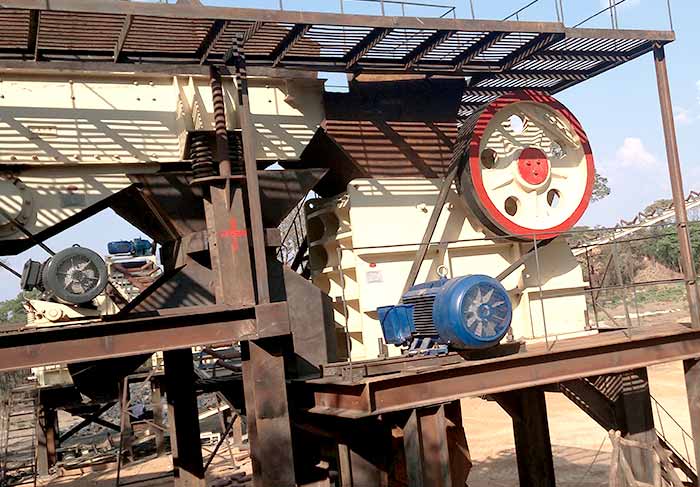

As a kind of classic crushing equipment, jaw crusher is widely used in metallurgy, chemical industry, building materials, electric power, transportation and other industries.
With optimized structure and hydraulic system, cone crusher has high efficiency, easy adjustment, easy maintenance, favored by more and more customers.
It is widely used for processing of various hard and brittle materials such as various rocks, abrasives, refractory materials, quartz stone, concrete aggregates, etc.
Mobile crusher eliminates the cumbersome steel frame structure and the foundation construction, saving time and costs. Without transportation, realizing direct production.
Model
|
Feed opening
(mm) |
Max.feeding size
(mm) |
Adjusting range of discharge opening
(mm) |
Processing capacity
(t/h) |
Rotation speed of eccentric shaft
(r/min) |
Motor power
(kw) |
Dimensions
(L×W×H) (mm) |
PE-150×250 | 150×250 | 125 | 10-40 | 1-3 | 250 | 4P 5.5 | 720×660×850 |
PE-200×300 | 200×300 | 180 | 15-50 | 2-6 | 260 | 4P 7.5 | 910×750×990 |
PE-200×350 | 200×350 | 180 | 18-70 | 3-10 | 260 | 4P 11 | 1000×870×990 |
PE-250×400 | 250×400 | 210 | 20-60 | 5-21 | 300 | 6P 15 | 1300×1090×1270 |
PE-400×600 | 400×600 | 340 | 40-100 | 16-64 | 275 | 6P 30 | 1730×1730×1630 |
PE-500×750 | 500×750 | 425 | 50-100 | 40-110 | 275 | 6P 55 | 1980×2080×1870 |
PE-600×750 | 600×750 | 500 | 150-200 | 80-240 | 275 | 6P 55 | 2070×2000×1920 |
PE-600×900 | 600×900 | 500 | 65-160 | 50-160 | 250 | 6P 55 | 2190×2206×2300 |
PE-750×1060 | 750×1060 | 630 | 80-140 | 110-320 | 250 | 8P 110 | 2660×2430×2800 |
PE-900×1200 | 900×1200 | 750 | 95-165 | 220-380 | 200 | 8P 110 | 3380×2870×3330 |
PE-1200×1500 | 1200×1500 | 1020 | 150-350 | 400-800 | 180 | 6P 160-220 | 4200×3300×3500 |
PE-1500×1800 | 1500×1800 | 1200 | 220-350 | 500-1000 | 180 | 8P 280-355 | 5160×3660×4248 |
PEX-150×750 | 150×750 | 120 | 18-48 | 8-25 | 320 | 4P 15 | 1200×1530×1060 |
PEX-250×750 | 250×750 | 210 | 25-60 | 13-35 | 330 | 6P 22 | 1380×1750×1540 |
PEX-250×1000 | 250×1000 | 210 | 25-60 | 16-52 | 330 | 6P 30 | 1560×1950×1390 |
PEX-250×1200 | 250×1200 | 210 | 25-60 | 20-61 | 330 | 6P 37 | 2140×1660×1500 |
PEX-300×1300 | 300×1300 | 250 | 20-90 | 16-105 | 300 | 6P 55 | 2720×1950×1600 |
Model | cavities | Maximum Feeding Size(mm) | Minimum Discharging Size(mm) | install Power(kw) | capacity(t/h) |
SC(S)100 | C1 | 250 | 22 | 90 | 85-170 |
C2 | 200 | 19 | 90 | 70-130 | |
SC(S)160 | C1 | 360 | 25 | 160 | 125-345 |
C2 | 300 | 22 | 160 | 108-305 | |
SC(S)250 | C1 | 450 | 35 | 250 | 267-605 |
C2 | 400 | 29 | 250 | 225-515 | |
SC(S)315 | C1 | 560 | 41 | 315 | 349-1050 |
C2 | 500 | 38 | 315 | 318-892 |
Model | cavities | Maximum Feeding Size(mm) | Minimum Discharging Size(mm) | install Power(kw) | capacity(t/h) |
SC100 | F1 | 150 | 10 | 90 | 45-135 |
F2 | 90 | 10 | 90 | 43-118 | |
F3 | 50 | 6 | 90 | 36-71 | |
SC160 | F1 | 200 | 13 | 160 | 69-215 |
F2 | 115 | 10 | 160 | 57-184 | |
F3 | 75 | 8 | 160 | 63-126 | |
SC250 | F1 | 215 | 16 | 250 | 116-396 |
F2 | 140 | 13 | 250 | 97-328 | |
F3 | 70 | 8 | 250 | 95-252 | |
SC315 | F1 | 275 | 16 | 315 | 177-662 |
F2 | 175 | 16 | 315 | 162-552 | |
F3 | 85 | 13 | 315 | 195-401 | |
SC560 | F1 | 300 | 22 | 560 | 448-1512 |
F2 | 195 | 19 | 560 | 380-1373 | |
F3 | 90 | 13 | 560 | 357-912 | |
SC750 | F1 | 370 | 25 | 750 | 394-2181 |
F2 | 300 | 19 | 750 | 342-2020 | |
F3 | 230 | 16 | 750 | 267-1814 | |
F4 | 120 | 13 | 750 | 248-1165 | |
F5 | 85 | 10 | 750 | 185-1170 |
Model | HXVSI-7611 | HXVSI-8518 | HXVSI-9526 | HXVSI-1140 | HXVSI-1145 | HXVSI-1150 | |
Capacity (t/h) |
Feed both at center and sides |
80-180 | 140-260 | 200-380 | 300-520 | 350-610 | 360-650 |
Feed at center |
40-90 | 70-130 | 100-190 | 160-260 | 180-355 | 190-365 | |
Max.feeding size(mm) |
Soft material |
35 | 40 | 45 | 50 | 50 | 50 |
Hard material |
30 | 35 | 40 | 40 | 45 | 45 | |
Rotation speed (r/min) |
1700-1890 | 1520-1690 | 1360-1510 | 1180-1310 | 1150-1300 | 1150-1300 | |
Double Motor power(kw) |
4P 110 | 4P 180 | 4P 264 | 4P 400 | 4P 440 | 4P 500 | |
Overall dimension (L×W×H)(mm) |
3700×2150×2100 | 4140×2280×2425 | 4560×2447×2778 | 5100×2700×3300 | 5500×2700×3300 | 5500×2700×3300 | |
Power supply | 380V 50HZ | ||||||
Lubrication station |
Double motor power of oil pump |
2×0.31Kw | |||||
Safety assuance |
The oil pump assure enough oil supply and automatic switch off with no oil pressure,air cooling or water cooling,motor heating start up in winter |
||||||
Overall dimension (L×W×H) (mm) |
820×520×1270 | ||||||
Power of oil tank heater |
2KW |
Model | HX938HD86 | HX1149HD98 | HX1349HD110 | HX1349HD125 |
Transportation lenght(mm) | 12600 | 13500 | 14500 | 15200 |
Transportation Width(mm) | 2600 | 2700 | 2800 | 2900 |
Transportation Height(mm) | 3870 | 4200 | 4450 | 4500 |
Maximum Lenght(mm) | 12500 | 14000 | 16100 | 16700 |
Maximum Width(mm) | 4100 | 4500 | 5100 | 5100 |
Maximum Height(mm) | 4100 | 4900 | 5000 | 5300 |
Weight(t) | 39 | 57 | 55 | 65 |
Jaw Crusher | HD86 | HD98 | HD110 | HD125 |
Maximum Feeding Size(mm) | 500 | 550 | 660 | 800 |
Discharge opening range | 50-150 | 75-175 | 100-200 | 125-225 |
Capacity(t/h) | 85-275 | 110-350 | 215-510 | 280-650 |
Vibrating Feeder | ZSW380×95 | ZSW420×110 | ZSW490×130 | ZSW490×130 |
Main Belt Conveyor | B800×8.5m | B1000×9.5m | B1000×11m | B1200×11m |
Side-opening Belt conveyor(optional) | B500×3m | B650×3.5m | B650×4m | B650×4m |
Gensrt(optional) | 200KW | 250KW | 270KW | 400KW |
Iron separator(optional) | RCYD(C)-8 | RCYD(C)-10 | RCYD(C)-10 | RCYD(C)-12 |

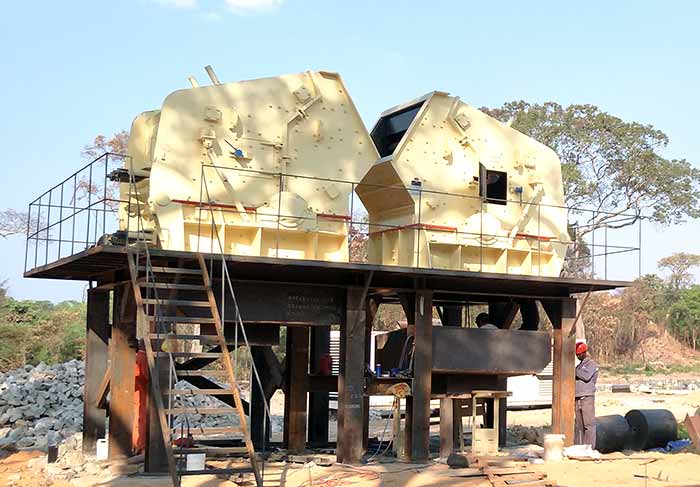

Model | Rotor diameter×length (mm) | Feed Opening Length×width(mm) | Feeding Size (mm) | Processing Capacity(t/h) | Power (kw) | Dimensions L×W×H (mm) |
PCZ1308 | Φ1330×790 | 870×780 | ≤380 | 60-160 | 132 | 2880×2130×2390 |
PCZ1410 | Φ1400×1000 | 1060×740 | ≤450 | 80-210 | 2×90(160) | 2830×2100×2485 |
PCZ1610 | Φ1600×1000 | 1090×930 | ≤480 | 100-230 | 2×132 | 3370×2415×2750 |
PCZ1612 | Φ1600×1200 | 1340×1140 | ≤500 | 120-350 | 2×160 | 3370×2613×2750 |
PCZ1615 | Φ1600×1500 | 1570×1140 | ≤550 | 200-550 | 2×200 | 3370×2925×2750 |
PCZ1716 | Φ1700×1600 | 1420×1200 | ≤600 | 400-850 | 2×250 | 3520×3000×3210 |
PCZ1720 | Φ1700×2000 | 2030×1200 | ≤650 | 500-1000 | 2×400 | 3670×3390×3330 |
PCZ1920 | Φ1900×2000 | 1980×1210 | ≤750 | 800-1500 | 2×500 | 4490×3910×3600 |
PCZ2225 | Φ2200×2500 | 2530×1610 | ≤1000 | 1500-3000 | 1250 | 4890×5010×4560 |
Final costs depend on many factors, please inquiry us, we will give customized solution and price.
