Stone Crushers

Stone Crushers

We have small, medium and large stone crusher for sale, stationary & mobile types for choice, meeting your different needs.

Capacity: 10-900t/h

Output Size: 0-40mm

Send Message Get Quotation

If you are interested in our products, please email us at sinohxjq@hxjq.com

3s quick online response 24 hours online service one working day reply

Leading Manufacturer and Supplier

40 Years history production base and exporter

Factory-direct Sale

Products are sold at factory price, no betweeners, saving costs.
Export to 90 Countries

Hot Sale in Africa, has established many stone crusher projects.
Company Factory Visit

Welcome to China to visit our company, provide pick-up service.

Processing Materials of Stone Crushers

Stone crushers can be used for crushing over 120 kinds of stones, such as granite, gravel, aggregate, rock, boulder, basalt, quartz, etc. It can be used for primary and secondary fine crushing, different final output sizes, common output size includes 0-10mm, 10-20mm, 20-30mm, 30-40mm, meeting your different needs.

Hot Sale Stone Crushers Types

The hot sale stone crusher model includes PE 400*600 jaw crusher, PE 600*900 jaw crusher, PF 1007 impact crusher, PF 1315 impact crusher, 4ft Symons cone crusher, 7ft Symons cone crusher, mobile jaw crusher, etc.

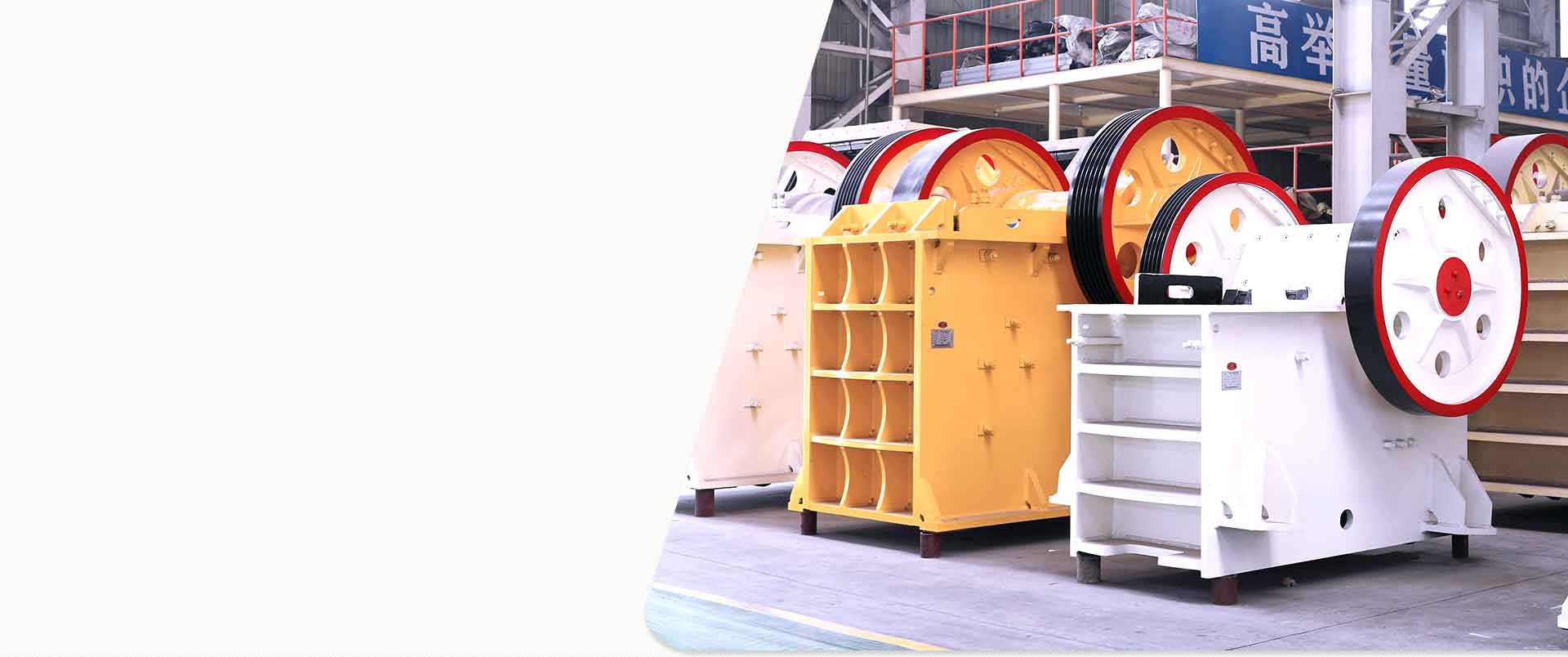

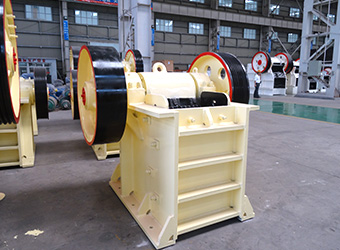

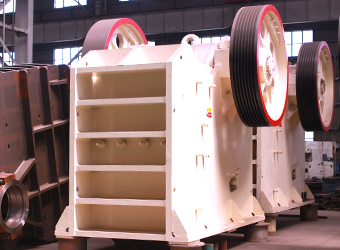

small jaw crusher

medium jaw crusher

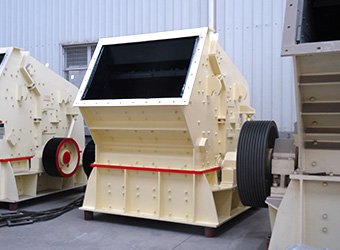

PF impact crusher

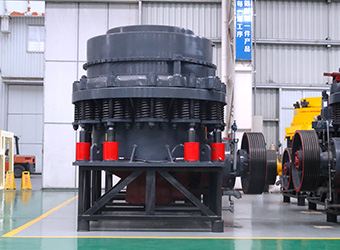

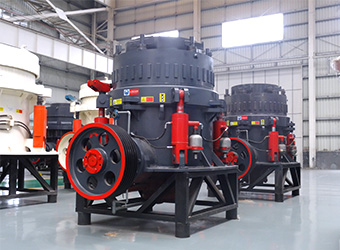

symons cone crusher

hydraulic cone crusher

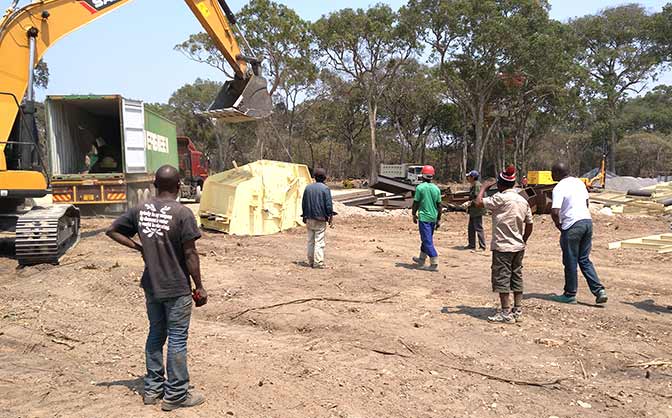

Related Projects of Stone Crushers

We have established many successful projects in Africa, Get your solution now

Get Your Solution

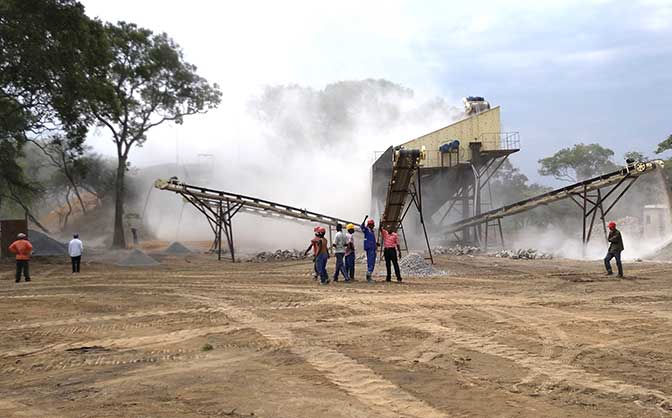

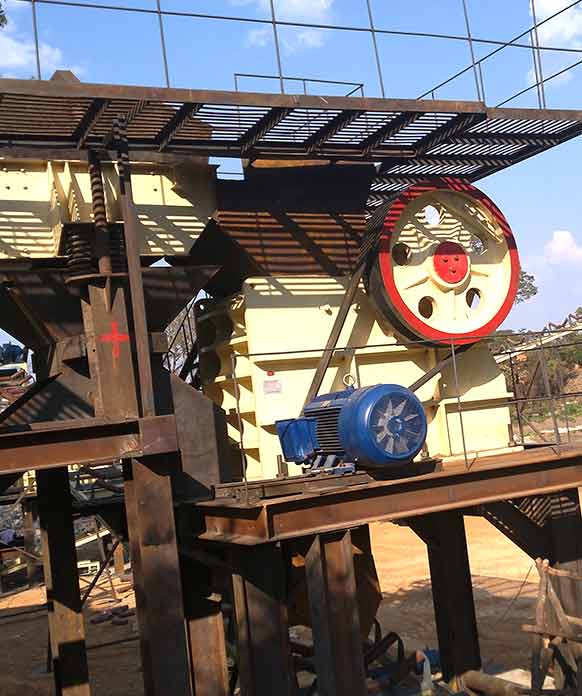

80t/h Stationary Stone Crusher in Nigeria

100-120t/h Stone Crusher in Rwanda

80-100t/h Stone Crusher in South Africa

300-400t/h Stone Crusher Plant in Zambia

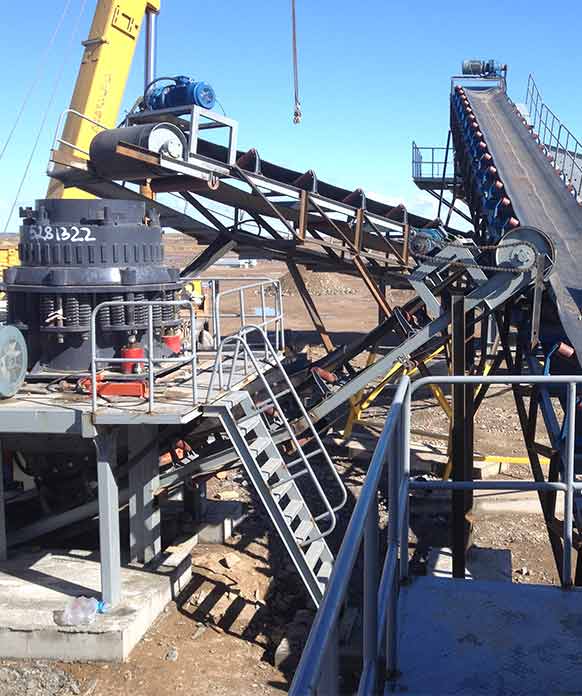

Stationary Stone Crusher Plant

Stationary crusher plant consists of jaw crusher+cone crusher+vibrating screen+vibrating feeder+belt conveyor.

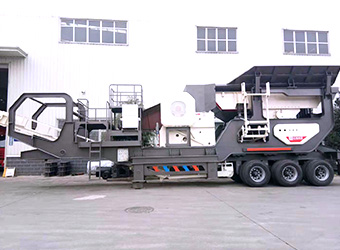

Mobile Stone Crusher Plant

Mobile jaw crusher with feeder is used for primary crushing, mobile impact crusher with screen for fine crushing.

Application area

The crushed stones can be used as aggregate in construction, building, road, highway, railway and other industries. The final product has high crushing efficiency and high quality, which meet the market demands and bring economic benefits for customers.

Broad market

The demand of the market on aggregate and artificial sand in many industries has become more and more urgent.
Return on investment

There are rich stones and rocks in many countries, after processing, high economic benefits.
Many channels

The final aggregate can be for own use or re-sell to other industries.

construction
railway
concrete
highway
bridge
road

Technical Data

Jaw Crushers
Cone Crusher
Impact Crusher
Mobile Crusher
PCZ Heavy Hammer Crusher

Model	Feed opening size(mm）	Max.Feeding size (mm)	Adjustment range of discharge port (mm)	Capacity(t/h)	Rotation speed of eccentric shaft(r/min)	Power (kw)	Dimensions（L×W×H） (mm)
PE 150×250	150×250	125	10-40	1-3	268	4P 5.5	760×700×860
PE 200×300	200×300	180	15-50	2-6	260	4P 7.5	915×780×990
PE 200×350	200×350	180	18-60	3-10	276	4P 11	1000×914×1112
PE 250×400	250×400	210	20-70	5-21	300	6P 15	1100×1032×1285
PE 400×600	400×600	340	40-100	16-64	270	6P 30	1623×1736×1615
PE 500×750	500×750	425	50-100	40-110	268	6P 55	1920×1850×1920
PE 600×750	600×750	500	150-200	80-240	268	6P 55	2020×1850×1920
PE 600×900	600×900	500	65-160	50-160	254	6P 55	2530×1900×2340
PE 750×1060	750×1060	630	80-180	110-320	245	8P 110	2680×2380×2785
PE 900×1200	900×1200	750	100-200	220-380	208	8P 110	3470×2876×3330
PE1200×1500	1200×1500	1020	150-350	400-1000	180	8P 160-245	4850×3220×3680
PE1500×1800	1500×1800	1200	220-350	500-1200	180	8P 280-380	5160×3660×4248
PEX 150×750	150×750	120	18-48	8-25	320	4P 15	1170×1575×1030
PEX 250×750	250×750	210	25-60	13-35	320	6P 22	1550×1730×1470
PEX 250×1000	250×1000	210	25-60	16-52	330	6P 30	1580×2006×1390
PEX 250×1200	250×1200	210	25-60	20-61	330	6P 37	1780×2214×1430
PEX 300×1300	300×1300	250	20-90	16-105	300	6P 55	2210×2320×1723

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Specification	Model	Diameter of large end of crushing cone (mm)	Max.feeding size(mm)	Width of discharge opening (mm)	Processing capacity (t/h)	Motor power (kw)	Total weight （t）	Dimensions (L×W×H) （mm）
Φ600	PYB600	600	65	12-25	40	8P 30	5	2234×1370×1675
Φ600	PYD600	600	35	3-13	12-23	8P 30	5.5	2234×1370×1675
Φ900	PYB900	900	115	15-50	50-90	8P 55	11.2	2692×1640×2350
	PYZ900		60	5-20	20-65		11.2	2692×1640×2350
	PYD900		50	3-13	15-50		11.3	2692×1640×2350
Φ1200	PYB1200	1200	145	20-50	110-168	8P 110	24.7	2790×1878×2844
	PYZ1200		100	8-25	42-135		25	2790×1878×2844
	PYD1200		50	3-15	18-105		25.3	2790×1878×2844
Φ1750	PYB1750	1750	215	25-50	180-360	8P 160	50.3	3910×2894×3809
	PYZ1750		185	10-30	80-210		50.3	3910×2894×3809
	PYD1750		85	5-13	60-180		50.2	3910×2894×3809
Φ2200	PYB2200	2200	300	30-60	420-700	8P 280-260	80	4622×3302×4470
	PYZ2200		230	10-30	130-410		80	4622×3302×4470
	PYD2200		100	5-15	80-200		81.4	4622×3302×4470

Model	Specifications （mm）	Feed Opening （mm）	Max.Feeding Size （mm）	Capacity （t/h）	Power （kw）	Dimensions（L×W×H）（mm）
PF-1007	Φ1000×700	400×730	300	30-70	4P 37-45	2330×1660×2300
PF-1010	Φ1000×1050	400×1080	350	50-90	4P 45-55	2370×1700×2390
PF-1210	Φ1250×1050	400×1080	350	70-130	6P 110	2680×2160×2800
PF-1214	Φ1250×1400	400×1430	350	80-180	6P 132	2650×2460×2800
PF-1315	Φ1320×1500	860×1520	500	100-280	6P 200	3180×2720×3120
PF-1320	Φ1300×2000	993×2000	500	140-380	6P 250	3220×3100×3120
PF-1520	Φ1500×2000	830×2040	700	200-550	4P 315-400	3959×3564×3330
PF-1820	Φ1800×2000	1260×2040	800	300-800	6P 630-710	4400×3866×4009

MOBLIE IMPACT CRUSHER TECHNICAL PARAMETERS

Model	HX938F1210	HX938FW1214	HX1149F1315	HX1349HD1110	HX1349HD1315
Transportation Length（mm）	12000	12000	13900	15450	15450
Transportation Width（mm）	2550	2550	2900	2950	2950
Transportation Height（mm）	3900	3900	4450	4500	4500
Maximum Length（mm）	12500	12500	13900	15450	15450
Maximum Width（mm）	3250	3260	3250	3250	3250
Maximum Height（mm）	5100	5200	5200	5200	5200
Weight（t）	39	44	54	62	62
Crusher Model	PF-1210	PF-1214	PF-1315	HD1110	HD1315
The Maximum Feeding Size（mm）	350	350	500	400	700
Production Capacity（t/h）	70-130	100-180	130-250	112	280
Vibrating Feeder	ZSW950×3800	ZSW950×3800	ZSW110×4900	ZSW130×4900	ZSW130×4900
Main Belt Conveyor	B800×8.5M	B800×8.5M	B1000×9.5M	B800×11M	B1200×11M
Side-opening Belt conveyor(Optional)	B500×3.2M	B500×3.2M	B650×4M	B650×4M	B650×4M
Genset(Optional) （kw）	320	320	400	320	440
Iron Separator (Optional)（kw）	RCYD(C)-8	RCYD(C)-8	RCYD(C)-10	RCYD(C)-8	RCYD(C)-12

MOBLIE JAW CRUSHER TECHNICAL PARAMETERS

Model	HX938HD80	HX1149HD98	HX1349HD110	HX1349HD125
Transportation Length(mm)	12600	13500	14500	15200
Transportation Width(mm)	2600	2700	2800	2900
Transportation Height(mm)	3870	4200	4450	4500
Maximum Length(mm)	12500	14000	16100	14700
Maximum Width(mm)	4100	4500	5100	5100
Maximum Height(mm)	4100	4900	5000	5300
Weight(t)	39	57	55	65
Tire Configuration	Dual-axial	Dual-axial	Dual-axial	Dual-axial
Jaw Crusher	HD80	HD98	HD110	HD125
Maximum Feeding Size(mm)	500	550	660	800
Discharge Opening Size(mm)	50-150	75-175	100-200	125-225
Capacity(t/h)	85-275	110-350	215-510	280-650
Vibrating Model	ZSW380×95	ZSW420×110	ZSW490×130	ZSW490×130
Main Belt Conveyor	B800×8.5M	B1000×9.5M	B1000×11M	B1200×11M
Side-opening Belt conveyor(Optional)	B500×3M	B650×3.5M	B650×4M	B650×4M
Genset(Optional) (kw)	200	250	270	400
Iron Separator (Optional)	RCYD(C)-8	RCYD(C)-10	RCYD(C)-10	RCYD(C)-12

Model	Rotor diameter×length (mm)	Feed Opening Length×width(mm)	Feeding Size (mm)	Processing Capacity(t/h)	Power (kw)	Dimensions L×W×H (mm)
PCZ1308	Φ1330×790	870×780	≤380	60-160	132	2880×2130×2390
PCZ1410	Φ1400×1000	1060×740	≤450	80-210	2×90(160)	2830×2100×2485
PCZ1610	Φ1600×1000	1090×930	≤480	100-230	2×132	3370×2415×2750
PCZ1612	Φ1600×1200	1340×1140	≤500	120-350	2×160	3370×2613×2750
PCZ1615	Φ1600×1500	1570×1140	≤550	200-550	2×200	3370×2925×2750
PCZ1716	Φ1700×1600	1420×1200	≤600	400-850	2×250	3520×3000×3210
PCZ1720	Φ1700×2000	2030×1200	≤650	500-1000	2×400	3670×3390×3330
PCZ1920	Φ1900×2000	1980×1210	≤750	800-1500	2×500	4490×3910×3600
PCZ2225	Φ2200×2500	2530×1610	≤1000	1500-3000	1250	4890×5010×4560

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Company Strength Display

As leading stone crusher manufacturer and exporter in China, we have three large sized workshops , over 2000 staffs, more than 600 sets of large and medium-sized digital processing equipment, which guarantee the product quality and long service life of the machine.
