Single Cylinder Hydraulic Cone Crusher

  • 36-2020t/h Processing capacity
  • 75-560mm Feeding Size
  • 6-41mm Output Size

Main Crushing Process

Adjustable final size to meet your different needs

Feel free to contact us anytime

Get Quotation
  • China 40 Yrs Manufacturer
  • Fast Delivery 15-40 Days
  • Wide Market 100+ Countries

If you are interested in our products, please email us at sinohxjq@hxjq.com

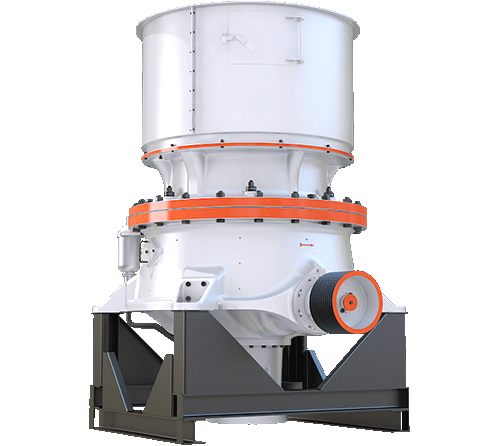

Brief Introduction of Single-cylinder Hydro Cone Crusher

Single-cylinder Hydro cone crusher is usually used for processing the hard stones and ores with medium and large production scale. With unique structure, it has large processing capacity.

The safety system adopts the overload protection device, which makes foreign materials go through the crushing chamber without bringing damage to the machine. The sealing modes are dry oil or water, guaranteeing the reliable production.

Single-cylinder Hydro cone crusher is used for crushing over 100 kinds of hard stones and ores. It can be used for primary seconday fine crushing of minerals. Spring cone crusher, symons cone crusher, hydro cone crusher for sale.

Application of Single-cylinder Hydro Cone Crusher

1.For granite, quarry stones, rocks, aggregate, basalt, limestone, gold ore, iron ore, etc.

2.Common final output size:0-10mm, 10-20mm, 20-30mm, 30-40mm, etc.

3.Hot sale capacity:20-50t/h, 60-100t/h, 150-200t/h, 200-300t/h, 300-400t/h, etc.

Advantages of Single-cylinder Hydro Cone Crusher

1.Factory-direct sale, guaranteed quality with competitive price, saving costs.

2.High crushing efficiency, adjustable final size, reliable performance, easy maintenance.

3.High quality spare parts, long lifetime, full service system.

Free Inquiry

Hot Sale Single Cylinder Hydraulic Cone Crusher Types

Live Videos of Single Cylinder Hydraulic Cone Crusher Projects

  • 50-80t/h Stone Crusher Plant

    PLAY
  • Mobile Stone Crusher Plant

    PLAY
Technical Data of Single Cylinder Hydraulic Cone Crusher

SC-S series of single cylinder hydraulic cone crusher parameters:

Model Cavities Feeding Size (mm) Maximum Feeding Size (mm) Minimum Discharging Size (mm) Power (kw) Capacity(t/h)
SC100S C1 250 200 22 90 85-170
C2 200 160 19 70-130
SC160S C1 360 290 25 160 125-345
C2 300 240 22 108-305
SC250S C1 450 360 35 250 267-605
C2 400 320 29 225-515
SC315S C1 560 450 41 315 349-1050
C2 500 400 38 318-892

Technical parameters of SC series single cylinder hydraulic cone crusher:

Model Cavities Feeding Size (mm) Maximum Feeding Size (mm) Minimum Discharging Size (mm) Power(kw) Capacity (t/h)
SC100 F1 150 120 10 90 45-135
F2 90 70 10 43-118
F3 38 30 4 25-40
SC160 F1 200 160 13 160 69-215
F2 115 90 10 57-184
F3 35 25 70-90
SC250 F1 240 190 16 250 116-396
F2 140 110 13 97-346
F3 70 55 9 90-251
SC315 F1 275 220 32 315 177-662
F2 215 170 29 209-643
F3 175 140 29 162-552
F4 85 70 19 175-325
SC560 F1 300 240 22 560 448-1512
F2 195 155 19 380-1373
F3 90 70 13 357-912
SC750 F1 370 295 25 750 394-2181
F2 300 240 19 342-2020
F3 230 185 16 267-1814
F4 120 95 13 248-1165
F5 85 70 10 185-1170

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
