Vibrating Screen

01Processing capacity:8-800m³/h
02Max Feeding Size:400mm
03Processing Material:200+ kinds

Processing Material: sandstone, rocks, pebble, limestone, calcite, granite, quartz, concrete, dolomite, slag, iron ore, copper ore, gold ore, coal gangue, basalt and other minerals.

Send Enquiry Get Quotation(contact us by one of the three ways)

If you are interested in our products, please email us at sinohxjq@hxjq.com

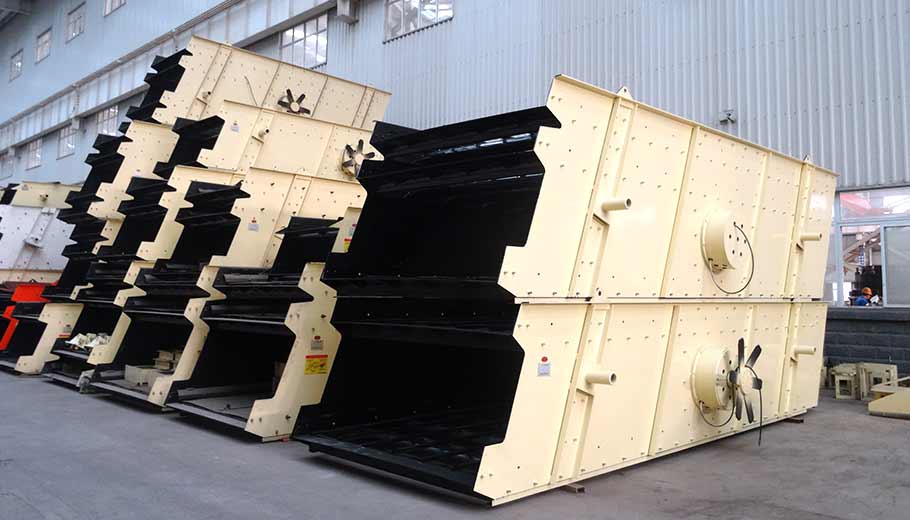

Introduction of Vibrating Screen

Vibrating screen, also known as circular vibrating screen, is a kind of necessary screening equipment for stone, aggregate, gravel, sand, ore and other minerals in mining, quarry, construction, building and other industries.

Generally, it is used as a kind of auxiliary equipment in stone crushing line, sand making production line, ore beneficiation plant, etc.

Features of Vibrating Screen

Vibrating screen is used for classifying and grading of the materials by its vibration. According to the quantity of layers, we have single-layer vibrating screen, double-layer and triple-layer vibrating screen. Each kind of vibrating screen has full models for choice.

Due to its high performance and 100% factory price, our vibrating screen has been exported to over 90 countries such as Indonesia, Malaysia, Kenya, Tanzania, Ethiopia, Nigeria, South Africa, Egypt,etc. If you are new in this industry, we will provide professional suggestions and solutions for you.

Advantages of Vibrating Screen

Three large sized workshops, strict quality control system and decades of years production technology make our crusher machine better performance, higher crushing efficiency and longer service life.

01
Strong Vibrating Force

Unique vibration way, full models for choice
02
Easy Operation & Maintenance

Compact structure, reliable performance
03
Long Service Life

High quality mesh,less quick-wear parts
04
Energy Saving,Low Costs

Low power consumption, high efficiency

Technical Data of Vibrating Screen

YK Series Vibrating Screen

HX Series Vibrating Screen

Model	Sieve Layer	Sieve Area (㎡)	Mesh Size (mm)	Max.Feeding Size (mm)	Processing capacity (m³/h)	Vibrating Frequency (r/min)	Double Amplitude (mm)	Power (kw)	Sieve Obliquity (°)	Sieve Specification (mm)	Dimensions (L×W×H) (mm)
2YK1230	2	7.2	4-50	200	12-78	970	6	6P 7.5	20	1200×3000	3530×1885×920
3YK1230	3	10.8	4-50	200	13-80	970	6	6P 7.5	20	1200×3000	3675×1885×1320
2YK1237	2	8.88	4-50	200	15-86	970	6	6P 7.5	20	1200×3700	4230×1990×920
3YK1237	3	13.32	4-50	200	16-90	970	6	6P 7.5	20	1200×3700	4375×1990×1320
2YK1548	2	14.4	5-50	200	22.5-162	970	6	6P 11	20	1500×4800	5355×2195×1030
3YK1548	3	21.6	5-50	200	22.5-162	970	6	6P 15	20	1500×4800	6055×2195×1740
4YK1548	4	28.8	5-50	200	22.5-162	970	6	6P 18.5	20	1500×4800	6195×2195×2120
2YK1854	2	19.44	5-80	200	32-312	970	6	6P 22	20	1800×5400	6515×2555×1370
3YK1854	3	29.16	5-80	200	32-312	970	6	6P 22	20	1800×5400	6655×2555×1750
4YK1854	4	38.88	5-80	200	32-336	970	6	6P 22	20	1800×5400	6790×2555×2130
2YK2160	2	25.2	5-100	200	50-475	970	6	6P 30	20	2100×6000	7200×2945×1580
3YK2160	3	37.8	5-100	200	50-475	970	6	6P 30	20	2100×6000	7340×2945×1980
4YK2160	4	50.4	5-100	200	50-497	970	6	6P 37	20	2100×6000	7490×2945×2380
2YK2460	2	28.8	5-100	200	65-550	970	6	6P 30	20	2400×6000	7200×3200×1580
3YK2460	3	43.2	5-100	200	70-620	970	6	6P 37	20	2400×6000	7340×3200×1980
4YK2460	4	57.6	5-100	200	80-680	970	6	6P 45	20	2400×6000	7490×3200×2380
2YK2866	2	31	5-100	200	70-650	970	6	6P 37	20	2800×5600	6950×3610×1790
3YK2866	3	47	5-100	200	80-700	970	6	6P 45	20	2800×5600	7130×3610×2270
4YK2866	4	62	5-100	200	90-750	970	6	6P 55	20	2800×5600	7300×3610×2750
2YK2873	2	39.2	5-100	200	70-680	970	6	6P 37	20	2800×6500	7850×3587×1790
3YK2873	3	58.8	5-100	200	80-720	970	6	6P 45	20	2800×6500	8025×3587×2270
4YK2873	4	58.8	5-100	200	90-950	970	6	6P 55	20	2800×6500	8200×3587×2750

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Sieve Layer	Sieve Obliquity (°)	Motor Power (kw)	Vibrating Frequency (r/min)	Max.Feeding Size (mm)	Capacity (t/h)	Dimensions(mm) （L×W×H）
2HX1545	2	18	15	780-900	200	45-500	5380×2295×1410
3HX1545	3	18	18.5	780-900	200	55-500	5575×2295×1990
4HX1545	4	18-20	22	780-900	200	65-500	5765×2295×1990
2HX1855	2	18	18.5	780-900	200	55-600	5680×2565×1450
3HX1855	3	18	22	780-900	200	65-600	5900×2565×2110
4HX1855	4	18-23	22	780-900	200	75-600	6030×2565×2500
2HX2165	2	18	30	780-900	200	65-700	7160×2990×1690
3HX2165	3	18	30	780-900	200	75-700	7380×2990×2365
4HX2165	4	18-23	37	780-900	200	85-700	7430×2990×2500
2HX2465	2	18	37	780-900	200	80-800	7160×3290×1690
3HX2465	3	18	37	780-900	200	90-800	7380×3290×2365
4HX2465	4	18-23	37	780-900	200	100-800	7430×3290×2500
2HX2765	2	18	37	780-900	200	100-900	7180×3570×1805
3HX2765	3	18	45	780-900	200	110-900	7390×3570×2445
4HX2765	4	18-23	45	780-900	200	120-900	7480×3570×2715
2HX3065	2	18	37	780-900	200	110-1200	7180×3870×1805
3HX3065	3	18	45	780-900	200	120-1200	7390×3870×2445
4HX3065	4	18-23	45	780-900	200	130-1200	7480×3870×2715
2HX3075	2	18	22×2	780-900	300	120-1300	8700×4055×1980
3HX3075	3	18	37×2	780-900	300	130-1300	8940×4120×2720

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

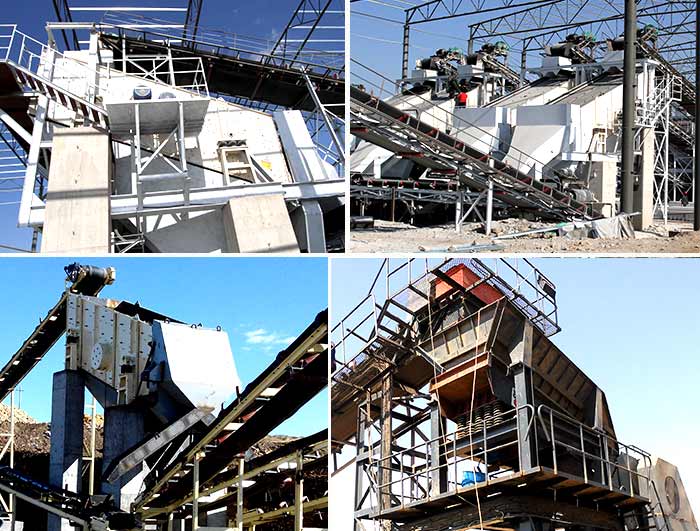

Related Projects

The following is part of our projects all over the world. If you are interested in our products and service, please feel free to contact us for more information.
