Rotary Dryer

01Processing capacity:1.9-76t/h
02Specification:full models for sale
03About Price:100% factory price

Processing Material:sand,ore powder, coal slime, gypsum, biomass, slurry, slag and other minerals.

Send Enquiry Get Quotation(contact us by one of the three ways)

If you are interested in our products, please email us at sinohxjq@hxjq.com

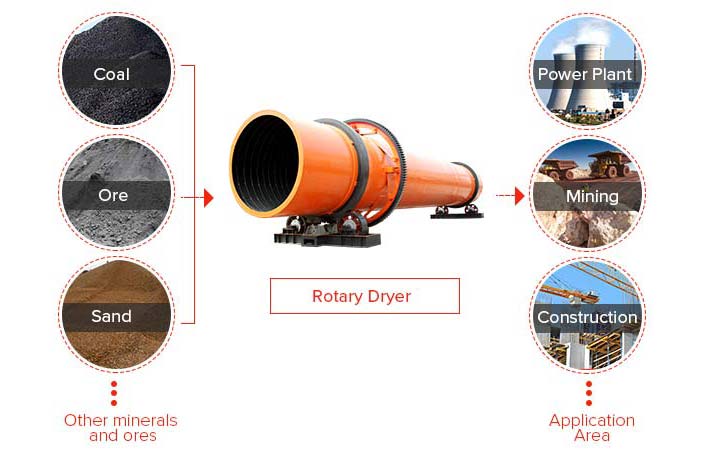

Application of Rotary Dryer

Rotary dryer,also known as rotary drum dryer, it is the most widely used dryer machine to process the materials with certain humidity to required standard such as coal slime, sand, fly ash, gypsum, slag, clay, ore powder, slurry, biomass, sawdust and other materials in ore beneficiation industry, construction, metallurgy, chemical plant.

Features of Rotary Dryer

Rotary dryer is mainly composed of rotary cylinder,frame,supporting device,induced draft fan and other parts. The drum is positioned at a slight horizontal slope to allow gravity to assist in moving material through the drum. As the drum rotates, lifting flights pick up the material and drop it through the air stream in order to maximize heat transfer efficiency.

Rotary dryer machine has strong adaptability to the materials and it is used to dry the materials with a certain degree of moisture and granularity. Specially designed lifting flights to maximize heat transfer between the material and hot gas stream.

Advantages of Rotary Dryer

01
Large Processing Capacity

Capacity range 1.9-76t/h,full models for sale
02
High Thermal Efficiency

Unique structure,professional design
03
Uniform Drying Effect

Precise temperature control,better drying effect
04
Wide Application Range

Suitable for kinds of materials in various fields

Technical Data of Rotary Dryer

Rotary Kiln

Indirect Heat Transfer Dryer

Spec./m	Shell Cubage	Capacity(t/h)	Installation(%)	Highest Inlet Air Temperature	Main Motor	Weight(t)
Φ 1.2×8	9	1.9-2.4	3-5	700-800	7.5	9
Φ1.2 ×10	11.3	2.4-3	3-5	700-800	7.5	11
Φ 1.5×12	21.2	4.5-5.7	3-5	700-800	15	18.5
Φ 1.5×14	24.7	5.3-6.6	3-5	700-800	15	19.7
Φ1.5×15	26.5	5.7-7.1	3-5	700-800	15	20.5
Φ 1.8×12	30.5	6.5-8.1	3-5	700-800	18.5	21.5
Φ 1.8×14	35.6	7.6-9.5	3-5	700-800	18.5	23
Φ 2.2×12	45.6	9.7-12.2	3-5	700-800	22	33.5
Φ 2.2×14	53.2	11.4-14.2	3-5	700-800	22	36
Φ 2.2×16	60.8	13-16.2	3-5	700-800	22	38
Φ 2.4×14	63.3	13.5-16.9	3-5	700-800	37	45
Φ 2.4×18	81.4	17.4-21.7	3-5	700-800	37	49
Φ 2.4×20	90.4	19.3-24.1	3-5	700-800	45	54
Φ 2.4×22	99.5	21.2-26.5	3-5	700-800	45	58
Φ 2.6×24	127.4	27.2-34	3-5	700-800	55	73
Φ 3×20	141.3	30.1-37.7	3-5	700-800	75	85
Φ 3×25	176.6	37.7-47.1	3-5	700-800	75	95
Φ 3.2×25	201	42.9-53.6	3-5	700-800	90	110
Φ 3.6×28	285	60.8-76	3-5	700-800	160	135

Spec./m (Dia.×Length）	Shell Cubage （m³）	Capacity （t/h）	Installation Obliquity （%）	Highest Inlet Air Temperature （℃）	Main Motor （kw)	Weight （t）
Φ1.2×8.0	9.0	1.9～2.4	3～5	700～800	7.5	9
Φ1.2×10	11.3	2.4～3.0	3～5	700～800	7.5	11
Φ1.5×12	21.2	4.5～5.7	3～5	700～800	15	18.5
Φ1.5×14	24.7	5.3～6.6	3～5	700～800	15	19.7
Φ1.5×15	26.5	5.7～7.1	3～5	700～800	15	20.5
Φ1.8×12	30.5	6.5～8.1	3～5	700～800	18.5	21.5
Φ1.8×14	35.6	7.6～9.5	3～5	700～800	18.5	23
Φ2.2×12	45.6	9.7～12.2	3～5	700～800	22	33.5
Φ2.2×14	53.2	11.4～14.2	3～5	700～800	22	36
Φ2.2×16	60.8	13.0～16.2	3～5	700～800	22	38
Φ2.4×14	63.3	13.5～16.9	3～5	700～800	37	45
Φ2.4×18	81.4	17.4～21.7	3～5	700～800	37	49
Φ2.4×20	90.4	19.3～24.1	3～5	700～800	45	54
Φ2.4×22	99.5	21.2～26.5	3～5	700～800	45	58
Φ2.6×24	127.4	27.2～34.0	3～5	700～800	55	73
Φ3.0×20	141.3	30.1～37.7	3～5	700～800	75	85
Φ3.0×25	176.6	37.7～47.1	3～5	700～800	75	95
Φ3.2×25	201	42.9～53.6	3～5	700～800	90	110
Φ3.6×28	285	60.8～76.0	3～5	700～800	160	135

Technical parameters of indirect heat dryer:

Shell diameter ×shell Length Items	Inside diameter of outer shell （mm）	Inside diameter of inner shell （mm）	Shell Length （m）	Shell cubage （m³）	Shell obliquity	Lifting blade form	Highest inlet air temperature （℃）	Dimensions （m）
Φ1.5×15m	1500	500	15	20.27	3-5%	Lifting form	850	16.2×2.7×2.7
Φ1.5×17m			17	22.97				18.2×2.7×2.7
Φ1.5×19m			19	25.68				20.0×2.9×2.9
Φ1.8×21m	1800	650	21	35.91	3-5%	Lifting form	850	22.5×2.7×2.7
Φ1.8×23m			23	39.33				24.5×2.9×2.9
Φ1.8×25m			25	42.75				26.5×2.9×2.9
Φ2.2×21m	2200	800	21	58.10	3-5%	Lifting form	850	----
Φ2.2×23m			23	63.61
Φ2.2×25m			25	69.15
