2000-10000 t/h Production Capacity

100-250 mm Output Size

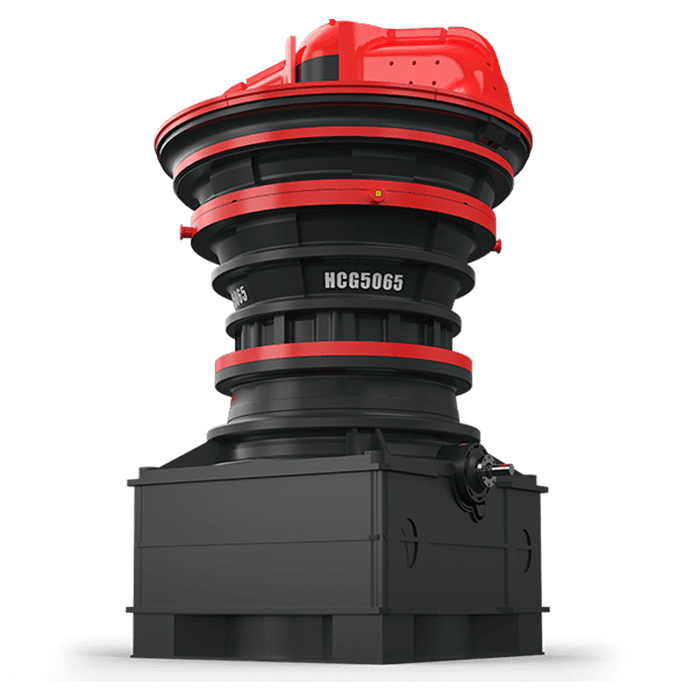

HCG SeriesGyratory Crusher

Gyratory crusher is a vertical compound crusher, also known as a compound crusher, which is a machine for crushing production lines and sand making production lines.

HCG Series Gyratory Crusher is a new type of high-efficiency coarse crushing equipment. It adopts international advanced technology manufacturing, the overall performance is in the leading position in the industry. This series of models can meet the configuration requirements of crushing system with processing capacity of 2000-10000t/h.

  • China 40 Yrs Manufacturer
  • Fast Delivery 15-40 Days
  • Wide Market 100+ Countries

Working Principle

The upper end of the main shaft equipped with the crushing cone is supported in the bushing in the middle of the beam, and the lower end is placed in the eccentric hole of the bushing. When the bushing driven by the pulley and the bevel gear rotates, the crushing cone is eccentric around the center line of the machine. The gyratory movement makes the surface of the crushing cone sometimes close to and sometimes away from the surface of the fixed cone, so that the materials entering the crushing chamber are continuously squeezed and bent to be crushed, and the crushed materials are discharged from the bottom of the crushing chamber by their own weight.

Application Area

HCG series gyratory crusher is a large-scale crushing machine that uses the crushing cone to circulate, squeeze, split and bend materials in the shell cone cavity, and roughly crushes ores or rocks of various hardness. It is a kind of cone crusher, mainly used for coarse crushing of ore.

Gyratory crushers are commonly used for crushing ores or rocks of various hardness such as granite, concrete, basalt, limestone, dolomite, iron ore, manganese ore, gold ore, copper ore, etc.

Free Inquiry

HCG series gyratory crusher is a new type of coarse crushing equipment with large capacity, high efficiency and intelligence. It is the best choice for users who demand large output, low maintenance rate and high stability.


It is a new type of coarse crushing equipment with large capacity, high efficiency and intelligence. Compared with traditional gyratory crusher, it has higher crushing efficiency, lower use cost, convenient maintenance and adjustment, and simple intelligent control. It is the best choice for users who demand large output, low maintenance rate and high stability.

Hot Sale HCG Series Gyratory Crusher Types

The Popular Models of Gyratory Crusher Include HCG4265, HCG6275, HCG60110.

Note: Gyratory crushers are suitable for use in factories and mining yards with large production volumes. According to experience, if one jaw crusher can meet the production requirements during model selection, use the jaw crusher; if two jaw crushers are required, you should consider choosing a gyratory crusher. Although the initial cost is somewhat high, in the long run, the overall benefit of the gyratory crusher is higher than that of the jaw crusher.

Related Pictures of HCG Series Gyratory Crusher

Professional and technical personnel in-depth analysis of materials, tailored for you to design a scientific and reasonable production line scheme. We have established many successful projects, Get your solution now.

Technical Data
Model Feeding opening size
Max.Feeding size
Adjustment range of discharge port
HCG4265 1065 900 140-175 2018-2878 400 3940×4170×6900
HCG5065 1270 1050 150-175 2403-2943 400 4460×4430×7610
HCG5475 1370 1150 150-200 2893-3493 450 4930×4925×8410
HCG6275 1575 1350 150-200 2898-4338 450 5580×5250×9090
HCG6089 1525 1300 165-230 4203-5813 630 5590×5445×10470
HCG60110 1525 1300 175-250 5543-8898 1250 6200×5940×11390

Note: Processing Capacity May Vary With Different Materials And Feeding Sizes.
